Camlock B male coupler supplier

material: Stainless steel 304, 316, aluminum
Size: 1/2' - 6'
Quality control: 100% air tight test
Thread: NPT thread, BSPT thread
Product description: PURSUE is Camlock B male coupler supplier and Camlock B male coupler manufacturer. We supply Camlock B male coupler
INQUIRY

Camlock B male coupler supplier

Product description:

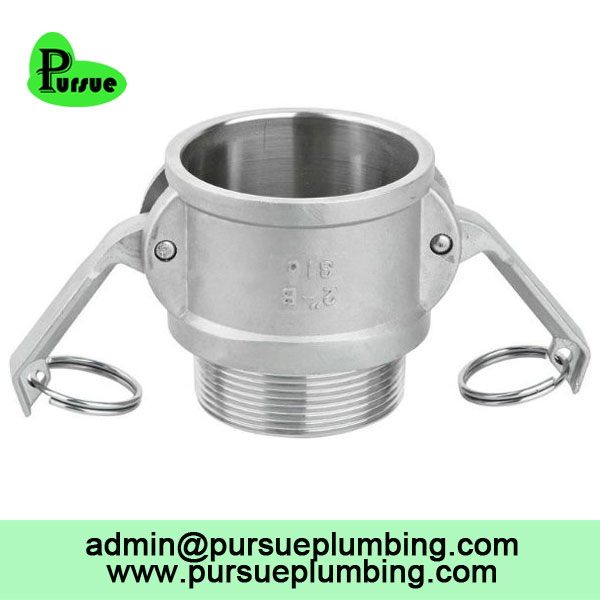

304 316 stainless steel Quick coupling Camlock connector male coupler type B

Camlock B male coupler

Item No.	Item name	DN size	Inch size
PS25320	Camlock B	DN15	1/2"
PS25321	Camlock B	DN20	3/4"
PS25322	Camlock B	DN25	1"
PS25323	Camlock B	DN32	1-1/4"
PS25324	Camlock B	DN40	1-1/2"
PS25325	Camlock B	DN50	2"
PS25326	Camlock B	DN65	2-1/2"
PS25327	Camlock B	DN80	3"
PS25328	Camlock B	DN100	4"
PS25329	Camlock B	DN125	5"
PS25330	Camlock B	DN150	6"

** Material: SS316, SS304, aluminum alloy

** Size: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 5", 6"

** Thread: ISO228 (BSP) / ISO7 (BSPT) / ANSI B1.20 (NPT)

** Medium: water, oil and gas.

Camlock B male coupler supplier

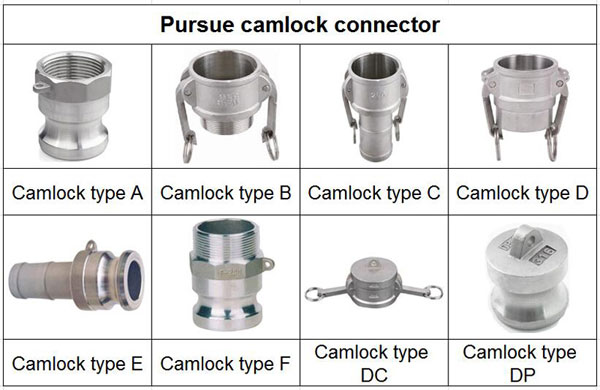

** Types: A, B, C, D, E, F, DC, DP (A, B, D, F with thread, B, C, D, DC with handles)

Type A: camlock female adapter, has a male grooved adapter and a female pipe thread (BSP or NPT thread) of the same size.

Type B: camlock male coupler, has a female camlock end and a male pipe thread of the same size.

Type C: camlock hose shank coupler, has a female camlock on one end and a male hose tail on the other.

Type D: camlock female coupler, has a female camlock end and a female pipe thread of the same size.

Type E: camlock hose shank adapter, has a male camlock on one end and a male hose tail on the other.

Type F: camlock female adapter, has a male grooved adaptor and a male pipe thread of the same size.

Type DC: camlock dust cap coupling, is an end cap with female camlock.

Type DP: camlock dust plug adapter, is an end cap with male camlock.

Camlock B male coupler supplier

How does pipe fitting works?

What's pipe fitting:
Pipe fitting are parts which connect joint pipes to be pipeline.

Pipe fitting material:
Pipe fitting materials mainly include: stainless steel 304, 316, brass, plastic, galvanized steel, etc.

Pipe fitting types:
Pipe fittings mainly include: coupling, socket, flange, elbow, tee, cross, reducing coupling, reducing elbow, reducing tee, male thread pipe fitting, female thread pipe fitting, etc.

How does pipe fitting works:
** Coupling, socket, flange are used to joint two pipes;
** Elbow is used when pipe need to turn direction, there are 90 degree elbow and 45 degree elbow.
** Tee is used when we need to joint three pipes together.
** Cross is used when we need to joint 4 pipes together.
** male thread pipe fitting and female thread pipe fitting are used to joint pipe with water meter, faucet, and also used to joint pipes with different connection methods. For example, use threaded fittings to joint press fitting pipeline to weld fitting pipeline.
