Quality warranty V profile viega M profile Mapress equal coupling dvgw w534 press fitting

dvgw w534 press fitting
v press fitting
press fitting equal coupling
material: Stainless steel 304, 316
Product description: PURSUE is manufacturer of dvgw w534 press fitting, more than 10 years experience, high quality and good price, 100% inspection before cargo delivery.
INQUIRY

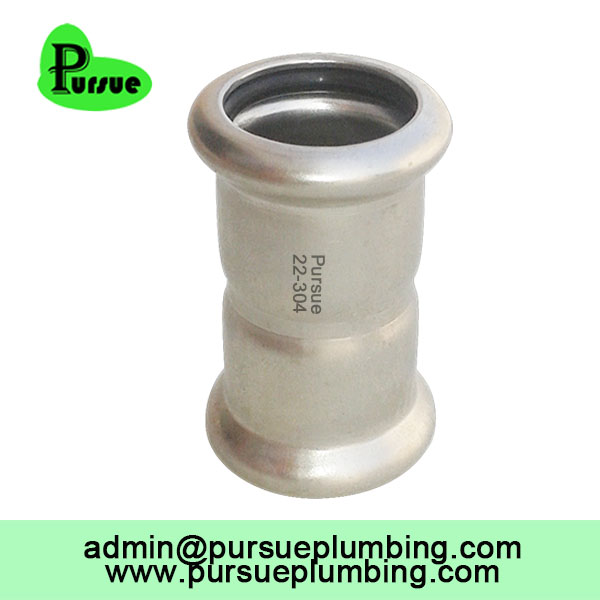

Quality warranty V profile viega M profile Mapress equal coupling dvgw w534 press fitting

Item number	Item name	Out diameter (mm)
PS101010	Equal coupling	15
PS101011	Equal coupling	18
PS101012	Equal coupling	22
PS101013	Equal coupling	28
PS101014	Equal coupling	35
PS101015	Equal coupling	42
PS101016	Equal coupling	54
PS101017	Equal coupling	76.1
PS101018	Equal coupling	88.9
PS101019	Equal coupling	108

Technical information:
-- Material for dvgw w534 press fitting: 304 and 316, carbon steel
-- Suit medium: water, compressed air, gas, oil etc. (Please select correct O ring material for different medium)
-- Working temperature for dvgw w534 press fitting: subject to the O ring material you use. (-20 to 110 degree for EPDM O ring)
-- Working pressure 1.6MPa =16bar = 232 psi,
-- Profile: M Profile and V profile Press Fitting available.
-- Standard: EN 10312
-- Quality Control: 100% airtight inspection
-- EN10312 out diameter: 15, 18, 22, 28, 35, 42, 54, 76.1, 88.9, 108mm (inch size: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4")
